Model

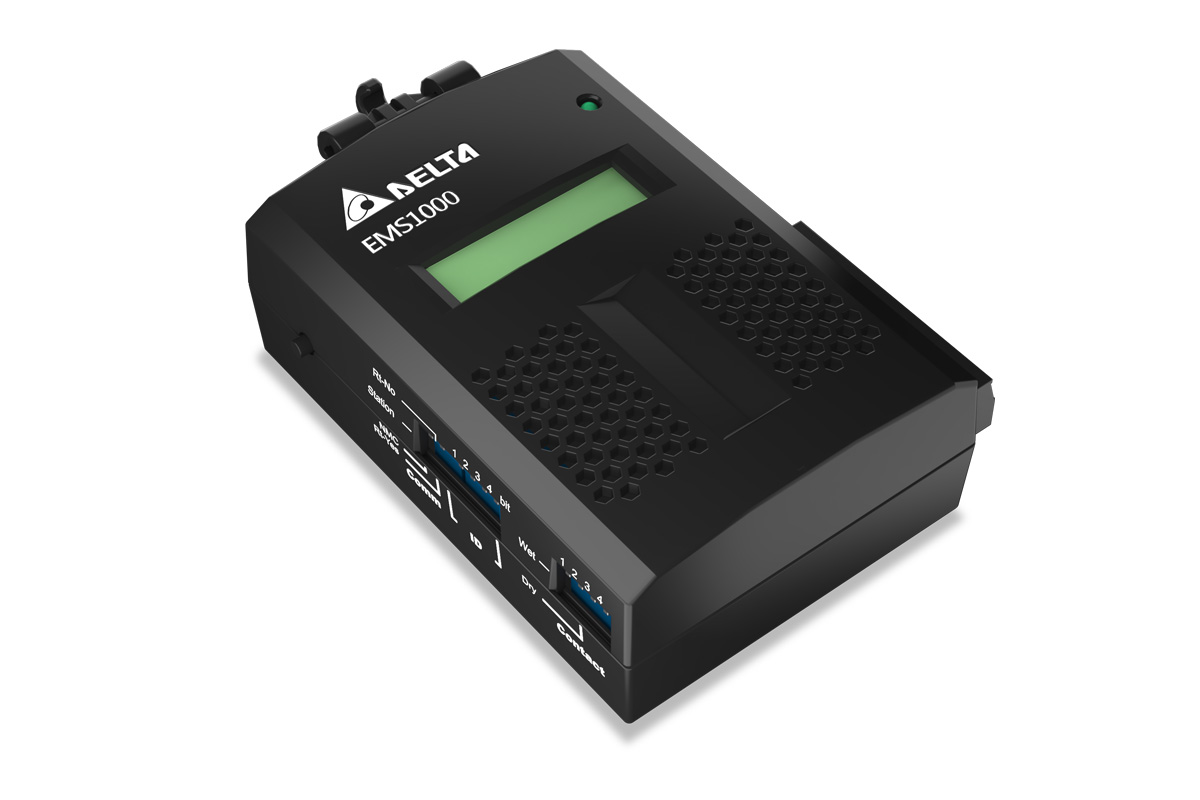

EMS1000 / EMS1100 / EMS1200
Deployment
Input: EMS2000 Delta-BUS or SNMP Card: 12 Vdc (pin 1 & 4) with PDU SNMP card: 5 Vdc (pin 2 & 4)
Input/Output Contacts
● EMS1000: 4 inputs (dry/wet)
● EMS1100: 4 digital outputs
● EMS1200: 2 analog inputs, 1 analog output and 1 water-leakage detection
Operation Temperature
● EMS1000: 0 to 60°C
● EMS1100/1200: 0 to 45°C
Storage Temperature
● EMS1000: -30 to 80°C
● EMS1100/1200: 0 to 60°C
Operation Humidity: 0-90% ± 3% (non-condensing)
Physical
Dimensions (W x D x H)
● EMS1000:66 x 99 x 33 mm
● EMS1100/1200: 66 x 103 x 33 mm
Net Weight
● EMS1000: 120 g
● EMS1100/1200: 130 g
Conformance
Standard: EN55022 Class B, EN55024
Product Certifications: CE, UL, cUL
Sustainability: RoHS, REACH
These specifications are subject to change without notice. Please contact us or our distributors in your region for the latest specs.
