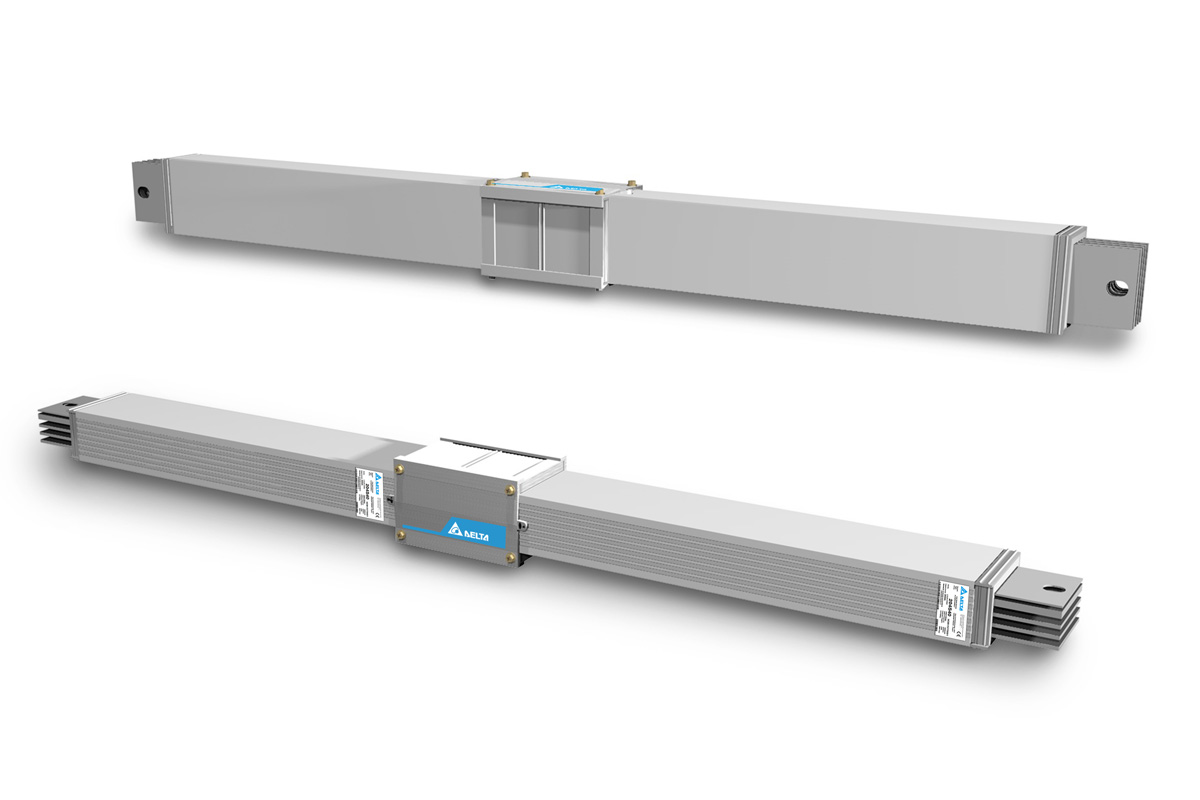

Busway
Rating: 400/600/800/1000/1250/1600/2000/2500/3200/4000/5000/6400 A
Rated voltage: 1000V
Frequency: 50/60 Hz
Conductor:
Copper purity: 99.9%, conductivity: 99.9% IACS
Aluminum purity: 98.0%, conductivity: 56.0% IACS
Conductor plating: Tin plating
Insulation material: Epoxy cast resin
Insulation class: Class F (155℃)
Fire Resistance
IEC60331 750°C 3 hrs, IEC60332
CNS12514 840°C 30 mins (Special made-C)
Ingress Protection rating: IP68
Earthquake Test: 0.8 g (magnitude > 7)
Explosive-symbol: ExmII
Mechanical Impact: IK10
Plug-in Unit
Type: Plug-in type/Bolt-on type
Pole: 1P/2P/3P/4P
Max. Rating
Plug-in type 630A
Bolt-on type 2000A
MCCB Brands: Mitsubishi, Fuji, GE, Schneider (MG), or Customer specified
Protection Rating: IP42/IP55 (Optional)
Panel Coating: Powder coated paint
Coating Thickness: Indoor 40μm/outdoor 50μm
Color: RAL7047/RAL7043
General Data
Standards:
IEC60439-2, IEC61439, IEC60529, IEC60331, IEC60332
JIS C8364, JIS A1304, JIS H3140
GB7251.1,GB7251.2, ANSI / UL857,NEMA BU-1
Ambient temperature: -20℃ /+50℃ avg. 35℃
Altitude: ≤ 2,000 m

Busway - Cooper Busway BL series, Copper

Model: BLC06
Rated current: 600A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 106.3 μΩ/m
Resistance R₈₅: 133.5 μΩ/m
Resistance X₅₀: 112.3 μΩ/m
Impedance Z₅₀: 174.5 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 106.3 μΩ/m
Resistance R₈₅: 133.5 μΩ/m
Resistance X₅₀: 134.8 μΩ/m
Impedance Z₅₀: 189.7 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 145 mm²
N (100%): 145 mm²
G (Internal): 72.5 mm²
Dimensions (H x W): 100 x 55 mm
Joint (H x W): 152 x 93 mm
Model: BLC08
Rated current: 800A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 68.7 μΩ/m
Resistance R₈₅: 86.2 μΩ/m
Resistance X₅₀: 79.9 μΩ/m
Impedance Z₅₀: 117.5 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 68.7 μΩ/m
Resistance R₈₅: 86.2 μΩ/m
Resistance X₅₀: 95.9 μΩ/m
Impedance Z₅₀: 128.9 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 232 mm²
N (100%): 232 mm²
G (Internal): 116 mm²
Dimensions (H x W): 100 x 70 mm
Joint (H x W): 152 x 93 mm
Model: BLC10
Rated current: 1000A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 50.2 μΩ/m
Resistance R₈₅: 63.0 μΩ/m
Resistance X₅₀: 57.3 μΩ/m
Impedance Z₅₀: 85.2 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 50.2 μΩ/m
Resistance R₈₅: 63.0 μΩ/m
Resistance X₅₀: 68.8 μΩ/m
Impedance Z₅₀: 93.3 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 307.4 mm^²
N (100%): 307.4 mm^²
G (Internal): 153.7 mm^²
Dimensions (H x W): 100 x 83 mm
Joint (H x W): 152 x 106 mm
Model: BLC12
Rated current: 1250A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 34.7 μΩ/m
Resistance R₈₅: 43.5 μΩ/m
Resistance X₅₀: 42.3 μΩ/m
Impedance Z₅₀: 60.7 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 34.7 μΩ/m
Resistance R₈₅: 43.5 μΩ/m
Resistance X₅₀: 50.8 μΩ/m
Impedance Z₅₀: 66.9 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 464 mm^²
N (100%): 464 mm^²
G (Internal): 232 mm^²
Dimensions (H x W): 100 x 110 mm
Joint (H x W): 152 x 133 mm
Model: BLC16
Rated current: 1600A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 23.0 μΩ/m
Resistance R₈₅: 28.9 μΩ/m
Resistance X₅₀: 28.0 μΩ/m
Impedance Z₅₀: 40.2 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 23.0 μΩ/m
Resistance R₈₅: 28.9 μΩ/m
Resistance X₅₀: 33.6 μΩ/m
Impedance Z₅₀: 44.3 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 696 mm²
N (100%): 696 mm²
G (Internal): 348 mm²
Dimensions (H x W): 100 x 150 mm
Joint (H x W): 152 x 173 mm
Model: BLC20
Rated current: 2000A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 17.9 μΩ/m
Resistance R₈₅: 22.5 μΩ/m
Resistance X₅₀: 22.1 μΩ/m
Impedance Z₅₀: 31.5 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 17.9 μΩ/m
Resistance R₈₅: 22.5 μΩ/m
Resistance X₅₀: 26.5 μΩ/m
Impedance Z₅₀: 34.8 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 928 mm^²
N (100%): 928 mm^²
G (Internal): 464 mm^²
Dimensions (H x W): 100 x 190 mm
Joint (H x W): 152 x 213 mm
Model: BLC25
Rated current: 2500A
Impedance values - at 50 Hz frequency/ 85°C temperature:
Resistance R₂₀: 15.1 μΩ/m
Resistance R₈₅: 18.9 μΩ/m
Resistance X₅₀: 17.7 μΩ/m
Impedance Z₅₀: 25.9 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 15.1 μΩ/m
Resistance R₈₅: 18.9 μΩ/m
Resistance X₅₀: 21.2 μΩ/m
Impedance Z₅₀: 28.4 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1160 mm^²
N (100%): 1160 mm^²
G (Internal): 580 mm^²
Dimensions (H x W): 100 x 230 mm
Joint (H x W): 152 x 253 mm
Model: BLC32
Rated current: 3200A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 11.6 μΩ/m
Resistance R₈₅: 14.5 μΩ/m
Resistance X₅₀: 13.4 μΩ/m
Impedance Z₅₀: 19.7 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 11.6 μΩ/m
Resistance R₈₅: 14.5 μΩ/m
Resistance X₅₀: 16.1 μΩ/m
Impedance Z₅₀: 21.7 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1392 mm^²
N (100%): 1392 mm^²
G (Internal): 696 mm^²
Dimensions (H x W): 100 x 270 mm
Joint (H x W): 152 x 293 mm
Model: BLC40
Rated current: 4000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 9.0 μΩ/m
Resistance R₈₅: 11.3 μΩ/m
Resistance X₅₀: 10.0 μΩ/m
Impedance Z₅₀: 15.1 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 9.0 μΩ/m
Resistance R₈₅: 11.3 μΩ/m
Resistance X₅₀: 12.0 μΩ/m
Impedance Z₅₀: 16.5 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1856 mm^²
N (100%): 1856 mm^²
G (Internal): 928 mm^²
Dimensions (H x W): 100 x 395 mm
Joint (H x W): 152 x 418 mm
Model: BLC50
Rated current: 5000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 7.6 μΩ/m
Resistance R₈₅: 9.5 μΩ/m
Resistance X₅₀: 8.8 μΩ/m
Impedance Z₅₀: 12.9 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 7.6 μΩ/m
Resistance R₈₅: 9.5 μΩ/m
Resistance X₅₀: 10.6 μΩ/m
Impedance Z₅₀: 14.2 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 2320 mm^²
N (100%): 2320 mm^²
G (Internal): 1160 mm^²
Dimensions (H x W): 100 x 475 mm
Joint (H x W): 152 x 498 mm
Model: BLC64
Rated current: 6400A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 6.1 μΩ/m
Resistance R₈₅: 7.7 μΩ/m
Resistance X₅₀: 6.3 μΩ/m
Impedance Z₅₀: 9.9 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 6.1 μΩ/m
Resistance R₈₅: 7.7 μΩ/m
Resistance X₅₀: 7.6 μΩ/m
Impedance Z₅₀: 10.8 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 2784 mm^²
N (100%): 2784 mm^²
G (Internal): 1392 mm^²
Dimensions (H x W): 100 x 555 mm
Joint (H x W): 152 x 578 mm

Busway - Aluminum Busway BL series, Aluminum

Model: BLA04
Rated current: 400A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 110.2 μΩ/m
Resistance R₈₅: 138.2 μΩ/m
Resistance X₅₀: 128.0 μΩ/m
Impedance Z₅₀: 188.4 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 110.2 μΩ/m
Resistance R₈₅: 138.2 μΩ/m
Resistance X₅₀: 153.6 μΩ/m
Impedance Z₅₀: 206.6 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 232 mm^²
N (100%): 232 mm^²
G (Internal): 116 mm^²
Dimensions (H x W): 100 x 70 mm
Joint (H x W): 152 x 93 mm
Model: BLA06
Rated current: 600A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 84.8 μΩ/m
Resistance R₈₅: 106.3 μΩ/m
Resistance X₅₀: 76.5 μΩ/m
Impedance Z₅₀: 131.0 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 84.8 μΩ/m
Resistance R₈₅: 106.3 μΩ/m
Resistance X₅₀: 91.8 μΩ/m
Impedance Z₅₀: 140.5 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 307.4 mm^²
N (100%): 307.4 mm^²
G (Internal): 153.7 mm^²
Dimensions (H x W): 100 x 83 mm
Joint (H x W): 152 x 106 mm
Model: BLA08
Rated current: 800A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 55.1 μΩ/m
Resistance R₈₅: 69.1 μΩ/m
Resistance X₅₀: 56.9 μΩ/m
Impedance Z₅₀: 89.5 μΩ/m
Impedance values - at 60 Hz frequency/ 85°C temperature:
Resistance R₂₀: 55.1 μΩ/m
Resistance R₈₅: 69.1 μΩ/m
Resistance X₅₀: 68.3 μΩ/m
Impedance Z₅₀: 97.2 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 464 mm^²
N (100%): 464 mm^²
G (Internal): 232 mm^²
Dimensions (H x W): 100 x 110 mm
Joint (H x W): 152 x 133 mm
Model: BLA10
Rated current: 1000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 47.0 μΩ/m
Resistance R₈₅: 58.9 μΩ/m
Resistance X₅₀: 49.8 μΩ/m
Impedance Z₅₀: 77.1 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 47.0 μΩ/m
Resistance R₈₅: 58.9 μΩ/m
Resistance X₅₀: 59.8 μΩ/m
Impedance Z₅₀: 83.9 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 580 mm^²
N (100%): 580 mm^²
G (Internal): 290 mm^²
Dimensions (H x W): 100 x 130 mm
Joint (H x W): 152 x 153 mm
Model: BLA12
Rated current: 1200A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 39.3 μΩ/m
Resistance R₈₅: 49.3 μΩ/m
Resistance X₅₀: 38.6 μΩ/m
Impedance Z₅₀: 62.6 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 39.3 μΩ/m
Resistance R₈₅: 49.3 μΩ/m
Resistance X₅₀: 46.3 μΩ/m
Impedance Z₅₀: 67.6 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 696 mm^²
N (100%): 696 mm^²
G (Internal): 348 mm^²
Dimensions (H x W): 100 x 150 mm
Joint (H x W): 152 x 173 mm
Model: BLA15
Rated current: 1500A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 29.8 μΩ/m
Resistance R₈₅: 37.4 μΩ/m
Resistance X₅₀: 28.9 μΩ/m
Impedance Z₅₀: 47.3 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 29.8 μΩ/m
Resistance R₈₅: 37.4 μΩ/m
Resistance X₅₀: 34.7 μΩ/m
Impedance Z₅₀: 51.0 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 928 mm^²
N (100%): 928 mm^²
G (Internal): 464 mm^²
Dimensions (H x W): 100 x 190 mm
Joint (H x W): 152 x 213 mm
Model: BLA16
Rated current: 1600A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 24.8 μΩ/m
Resistance R₈₅: 31.1 μΩ/m
Resistance X₅₀: 22.3 μΩ/m
Impedance Z₅₀: 38.3 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 24.8 μΩ/m
Resistance R₈₅: 31.1 μΩ/m
Resistance X₅₀: 26.8 μΩ/m
Impedance Z₅₀: 41.1 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1160 mm^²
N (100%): 1160 mm^²
G (Internal): 580 mm^²
Dimensions (H x W): 100 x 230 mm
Joint (H x W): 152 x 253 mm
Model: BLA20
Rated current: 2000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 21.8 μΩ/m
Resistance R₈₅: 27.4 μΩ/m
Resistance X₅₀: 17.4 μΩ/m
Impedance Z₅₀: 32.5 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 21.8 μΩ/m
Resistance R₈₅: 27.4 μΩ/m
Resistance X₅₀: 20.9 μΩ/m
Impedance Z₅₀: 34.5 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1392 mm^²
N (100%): 1392 mm^²
G (Internal): 696 mm^²
Dimensions (H x W): 100 x 270 mm
Joint (H x W): 152 x 293 mm
Model: BLA25
Rated current: 2500A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 15.7 μΩ/m
Resistance R₈₅: 19.7 μΩ/m
Resistance X₅₀: 12.9 μΩ/m
Impedance Z₅₀: 23.5 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 15.7 μΩ/m
Resistance R₈₅: 19.7 μΩ/m
Resistance X₅₀: 15.5 μΩ/m
Impedance Z₅₀: 25.1 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 1392 mm^²
N (100%): 1392 mm^²
G (Internal): 696 mm^²
Dimensions (H x W): 100 x 270 mm
Joint (H x W): 152 x 293 mm
Model: BLA32
Rated current: 3200A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 13.6 μΩ/m
Resistance R₈₅: 17.1 μΩ/m
Resistance X₅₀: 10.0 μΩ/m
Impedance Z₅₀: 19.8 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 13.6 μΩ/m
Resistance R₈₅: 17.1 μΩ/m
Resistance X₅₀: 10.0 μΩ/m
Impedance Z₅₀: 20.9 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 2320 mm^²
N (100%): 2320 mm^²
G (Internal): 1160 mm^²
Dimensions (H x W): 100 x 475 mm
Joint (H x W): 152 x 498 mm
Model: BLA40
Rated current: 4000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 10.9 μΩ/m
Resistance R₈₅: 13.7 μΩ/m
Resistance X₅₀: 8.3 μΩ/m
Impedance Z₅₀: 16.0 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 10.9 μΩ/m
Resistance R₈₅: 13.7 μΩ/m
Resistance X₅₀: 9.9 μΩ/m
Impedance Z₅₀: 16.9 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 2784 mm^²
N (100%): 2784 mm^²
G (Internal): 1392 mm^²
Dimensions (H x W): 100 x 555 mm
Joint (H x W): 152 x 578 mm
Model: BLA50
Rated current: 5000A
Impedance values - at 50 Hz frequency/85°C temperature:
Resistance R₂₀: 9.3 μΩ/m
Resistance R₈₅: 11.6 μΩ/m
Resistance X₅₀: 5.1 μΩ/m
Impedance Z₅₀: 13.0 μΩ/m
Impedance values - at 60 Hz frequency/85°C temperature:
Resistance R₂₀: 9.3 μΩ/m
Resistance R₈₅: 11.6 μΩ/m
Resistance X₅₀: 7.0 μΩ/m
Impedance Z₅₀: 13.5 μΩ/m
Conductor Cross-section Area:
L1,L2,L3: 2784 mm^²
N (100%): 2784 mm^²
G (Internal): 1392 mm^²
Dimensions (H x W): 100 x 555 mm
Joint (H x W): 152 x 578 mm
