Model
DPH-60K-LV / DPH-105K-LV
Power Rating
⦁ DPH-60K-LV: 15, 30, 45, 60 kVA/kW
⦁ DPH-105K-LV: 15, 30, 45, 60, 75, 90, 105 kVA/kW
Maximum Power Module Quantity
DPH-60K-LV: 4+1 redundancy
DPH-105K-LV: 7+1 redundancy
Maximum Battery Module Quantity (Inbuilt)
⦁ DPH-60K-LV: 16 pcs (4 strings)
⦁ DPH-105K-LV: N/A
Input
Nominal Voltage: 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)
Voltage Range: 166~253 Vac (full load)
iTHD
< 5% (non-linear)
< 3% (linear)*
Power Factor: > 0.99
Frequency: 40~70 Hz
Output
Output Voltage: 208/120 Vac, 220/127 Vac (3 phase, 4-wire +G)
Voltage Regulation: ± 1% (static)
Output Power Factor: Unity
THDv
< 2% (Linear)
< 5% (Non-linear)
AC-AC Efficiency: 95%
ECO Efficiency: Up to 98.5%
Overload Capacity
≤ 125%: 10 minutes
≤ 150%: 1 minute
> 150%: 1 second
Battery
Nominal Voltage: ± 168 Vdc (± 14 pcs)
Charge Voltage: ± 190 Vdc (adjustable from 182 Vdc to 196 Vdc)
Charge Current: 6 A Max. per power module
Physical
Dimension (W x D x H): 23.62” x 33.46” x 78.74” (600 x 850 x 2000 mm)
Weight - UPS System
⦁ DPH-60K-LV: 562.2 lb (255 kg)
⦁ DPH-105K-LV: 619.5 lb (281 kg)
Weight - Power Module: 46.3 lb (21 kg / 1 pc)
Weight - Battery Module: 51.8 lb (23.5 kg / 1 pc, 1 battery module=9 Ah battery x 7 pcs)
Environment
Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -13 to 167°F (-25 to 75°C)
Relative Humidity: 5~95% non-condensing
Others
Compliance: UL 1778, FCC Class A, Energy Start 2.0
Parallel: Maximum 4 units
Display: 10” Touch Panel
Communication Interface: Ethernet, RS485
Modular battery cabinet
Dimension (W x D x H): 23.62” x 33.46” x 78.74” (600 x 850 x 2000 mm)
Weight
w/ Full Battery module : 2123.1 lb (963 kg)
w/o Battery module: 465.2 lb (211 kg)
Maximum Number of Battery Strings: 8
Maximum Number of Battery Modules: 32
* When input voltage total harmonic distortion input is less than 1%

All specifications are subject to change without prior notice.

Downloads

Inquiry

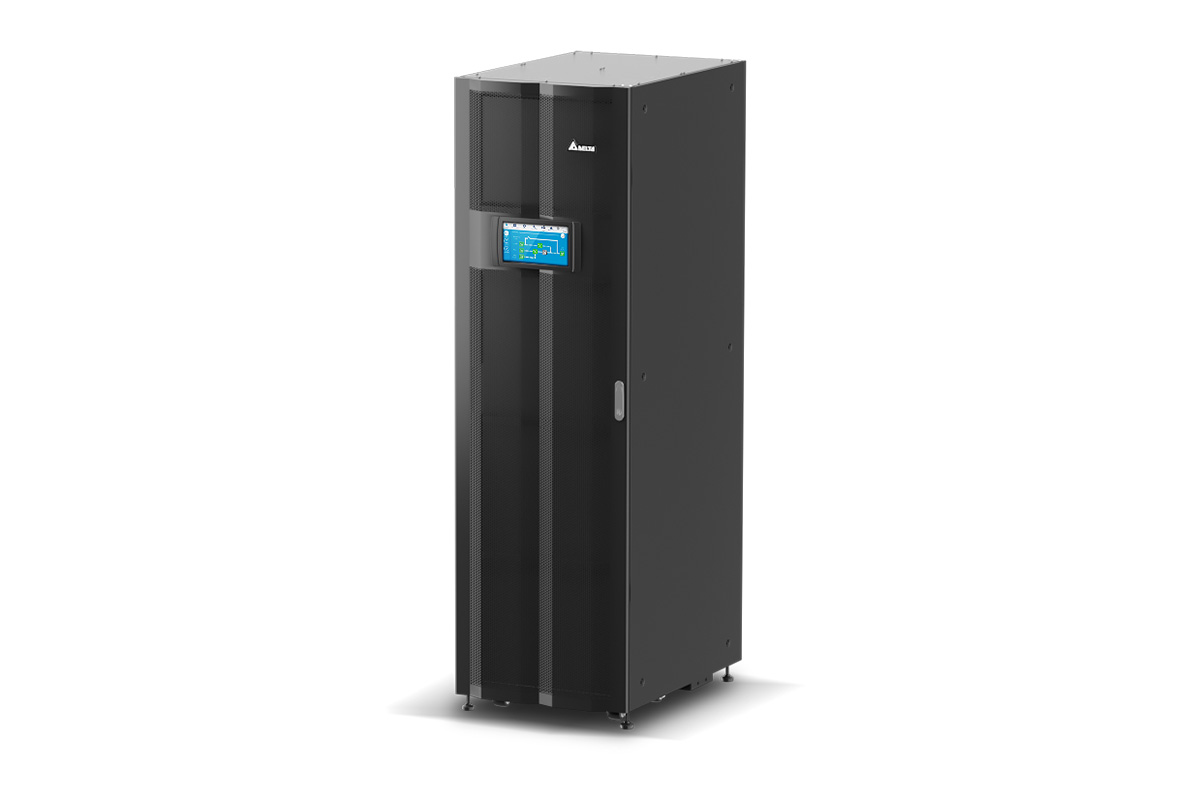

DPH Series 15- 60/105 kVA (208V)
