Model

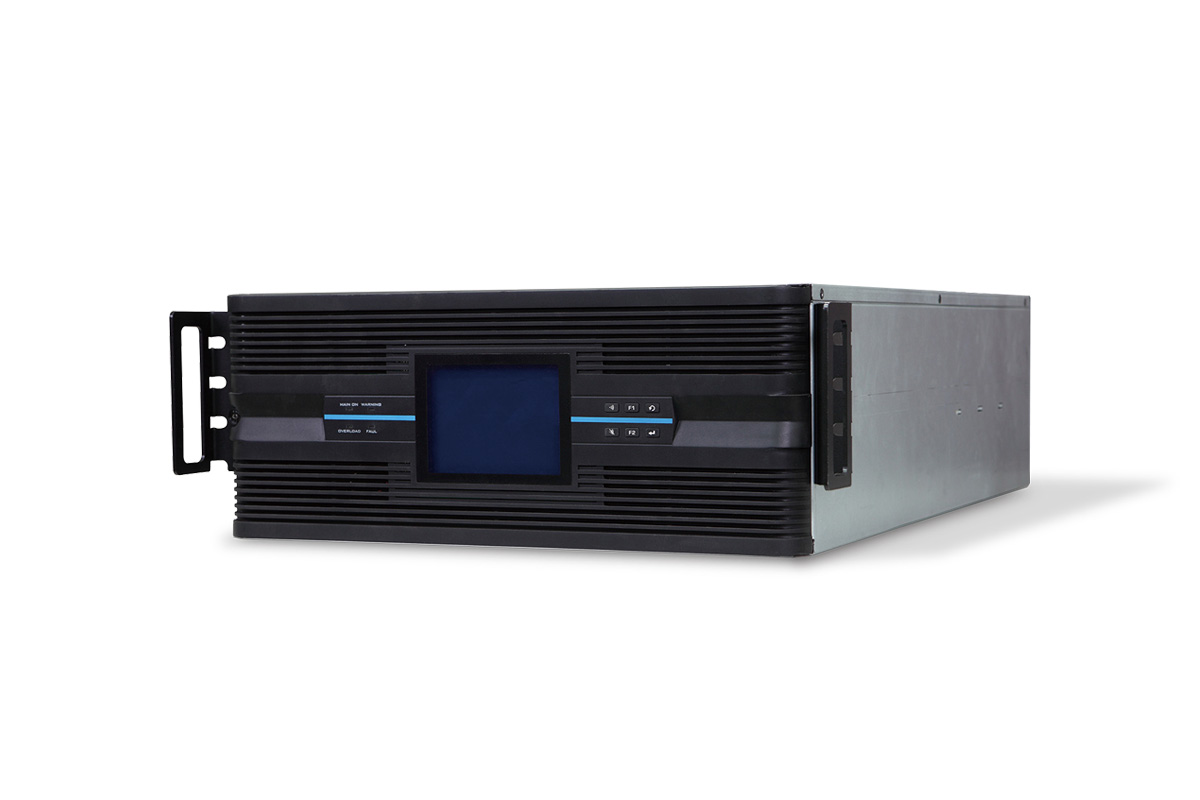

Rack-Mount RPP
Input
Nominal Voltage: 220/380 V, 230/400 V, 240/415 V (3-phase, 4-wire + G)
Voltage Range 220/380 V ± 15%
Frequency Range: 50/60 Hz ± 5%
Main Input Breaker: 63/100/160 A
Output
Full Load Rating : 30/50/80 kVA
Nominal Voltage: 220/380 V, 230/400 V, 240/415 V
LCD Display
Total Output: Current, load (%), kVA, kW, kW.h and temperature
Each branch: Load (%), current and kW.h
Interface
Standard
RS-232 port x 1, CAN Bus port x 1, Smart slot x 1, Output dry contact x 6, REPO x 1
Environment
Operating Temperature: 0~40℃
Relative Humidity: 90% (non-condensing)
Audible Noise: < 70 dBA in normal mode (at a distance of 1 meter in front of the Rack-Mount Remote Power Panel)
Protection (IP Degree): IP20
Others
Parallel Redundancy: N/A
Emergency Power Off: Yes (Remote)
Physical
Dimensions (W x D x H): 430 x 665 x 173 mm
Weight: 38 kg (Max.)
Hot-Swappable Breaker Module: 1~6 (at maximum 18-pole supported)
All specifications are subject to change without prior notice.
