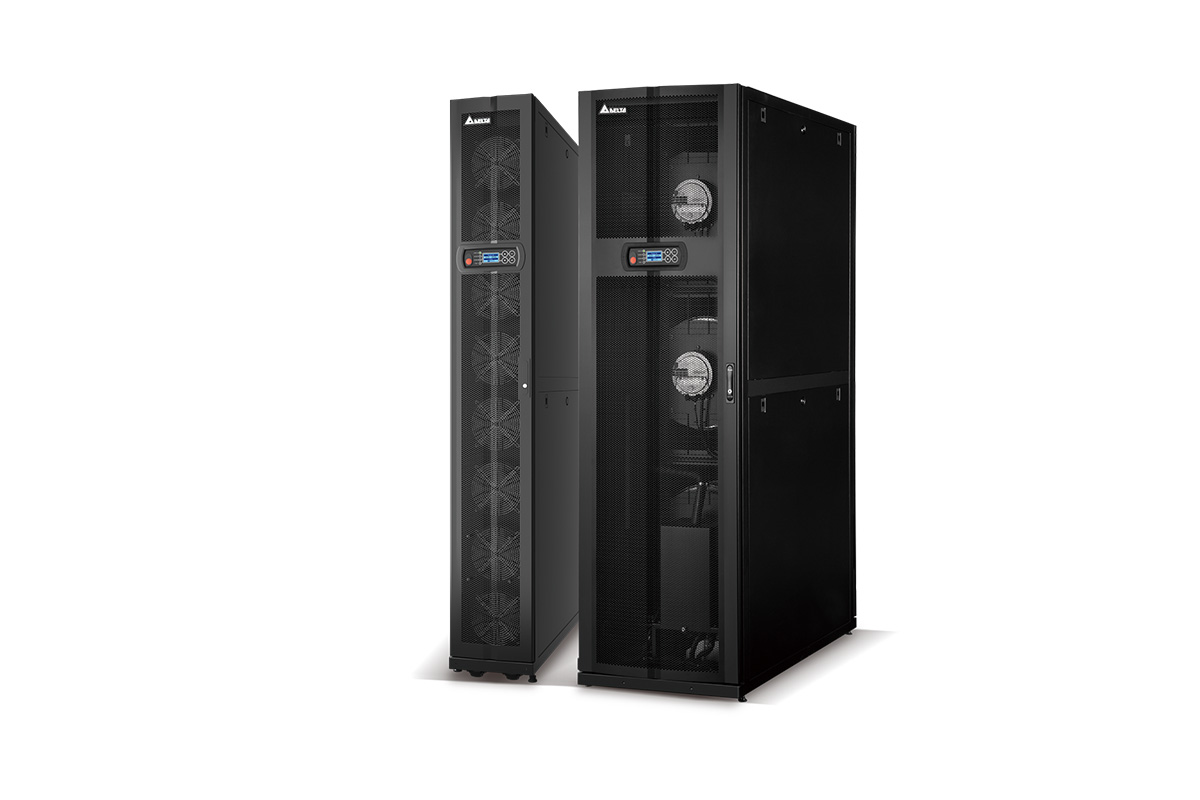

Model
CW-29 / CW-43 / CW-70 / CW-95
Cooling Capacity
Total Cooling Capacity⁽¹⁾
• CW-29: 30.8 kW
• CW-43: 43.4 kW
• CW-70: 69.3 kW
• CW-95: 92.6 kW
Sensible Cooling Capacity⁽¹⁾
• CW-29: 30.2 kW
• CW-43: 43.0 kW
• CW-70: 69.3 kW
• CW-95: 91.6 kW
Total Cooling Capacity⁽²⁾
• CW-29: 37.1 kW
• CW-43: 50.4 kW
• CW-70: 83.1 kW
• CW-95: 110.7 kW
Sensible Cooling Capacity⁽²⁾
• CW-29: 37.1 kW
• CW-43: 50.4 kW
• CW-70: 83.1 kW
• CW-95: 110.7 kW
Total Cooling Capacity⁽³⁾
• CW-29: 28.8 kW
• CW-43: 36.0 kW
• CW-70: 110.7 kW
• CW-95: 79.4 kW
Sensible Cooling Capacity⁽³⁾
• CW-29: 28.8 kW
• CW-43: 36.0 kW
• CW-70: 57.4 kW
• CW-95: 79.4 kW
Deployment
Coolant Type: Chilled Water
Piping Connection Location: Top/ Bottom
Chilled Water Flow Rate
• CW-29: 68.3 LPM
• CW-43: 80 LPM
• CW-70: 111.2 LPM
• CW-95: 120 LPM
Airflow Rate
• CW-29: 2902 CFM
• CW-43: 4415 CFM
• CW-70: 6700 CFM
• CW-95: 8200 CFM
Air Discharge Direction: Front
Heater
• CW-70/95: Finned Tube (Optional)
Humidifier
• CW-70/95: Electrode (Optional)
Power Supply
Nominal Power Supply Voltage
• CW-29: 220/ 230 Vac, 1P2W+PE
• CW-43: 220/ 230/ 240 Vac, 1P2W+PE
• CW-70: 380 Vac, 3P4W+PE
• CW-95: 380/ 400 Vac, 3P4W+PE
Operating Voltage Range
• CW-29: 198-242 Vac
• CW-43: 198-264 Vac
• CW-70: 342-418 Vac
• CW-95: 360-440 Vac
Frequency: 50/ 60 Hz
Maximum Power Consumption
• CW-29: 1 kW
• CW-43: 2.4 kW
• CW-70: 3 kW / 10.8 kW⁽⁴⁾
• CW-95: 4.8 kW / 12.9 kW⁽⁴⁾
Dual Power Feed: Standard
Physical
Dimensions (W x D x H)
• CW-29/43: 300 x 1090 x 2000 mm
• CW-70/95: 600 x 1090 x 2000 mm
Net Weight
• CW-29: 185 kg
• CW-43: 187 kg
• CW-70: 368 kg / 375 kg⁽⁴⁾
• CW-95: 415 kg / 422 kg⁽⁴⁾
Communication Interface
Display: LCD+LED indicators
Protocols: SNMP, Modbus RTU
Environment
Operating Temperature: 4 to 40°C
Humidity: 30-85%
Conformance
Safety: CE
Seismic Rating: GR63 Zone 4
Features
Leak Detection: Standard
Remote Rack Temperature: Standard
Drain Pump: Optional
Reheat and Humidifier Lockout: Optional
(1) Cooling Capacity: At 40.6°C dry bulb, 21.6°C wet bulb, and 7°C inlet water.
(2) Maximum Capacity: At 48.9°C dry bulb, 23.9°C wet bulb, and 7°C inlet water.
(3) High Temp Water Capacity: At 40.6°C dry bulb, 21.6°C wet bulb, with 12°C inlet and 20°C outlet water.
(4) With heater and humidifier

All specifications are subject to change without prior notice.
