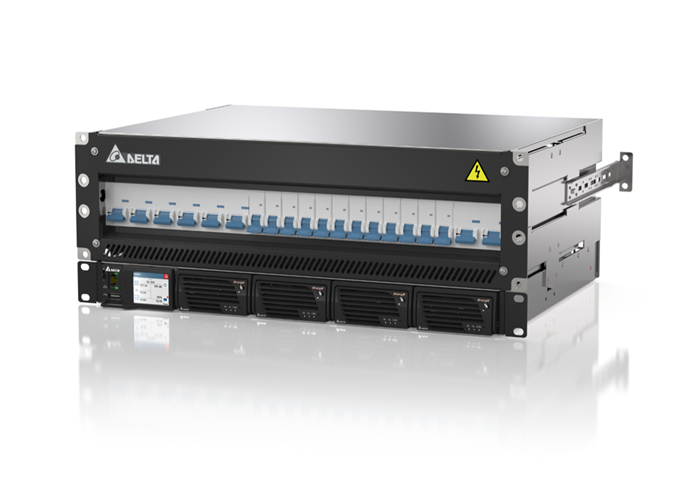

19IN-4U rack mounted system
Max. install power 12 kW
Max. 4 x rectifiers 3000 W
Efficiency 98.0 %
Input voltage 80 V_RMS to 300 V_RMS
AC configuration 3L + N + PE or
optional different configuration
Max. output current 200 A
Load breakers
18 x MCB (2 - 63 A) optional split for critical and no critical groups
Battery breakers
4 x MCB (up to 125 A) or
2 x MCB (up to 200 A) or
1 x MCB (up to 300 A)
Controller ORION Touch
IEC 62368 / EN 300386
Weight 11 kg
(excluding rectifiers)
