Model

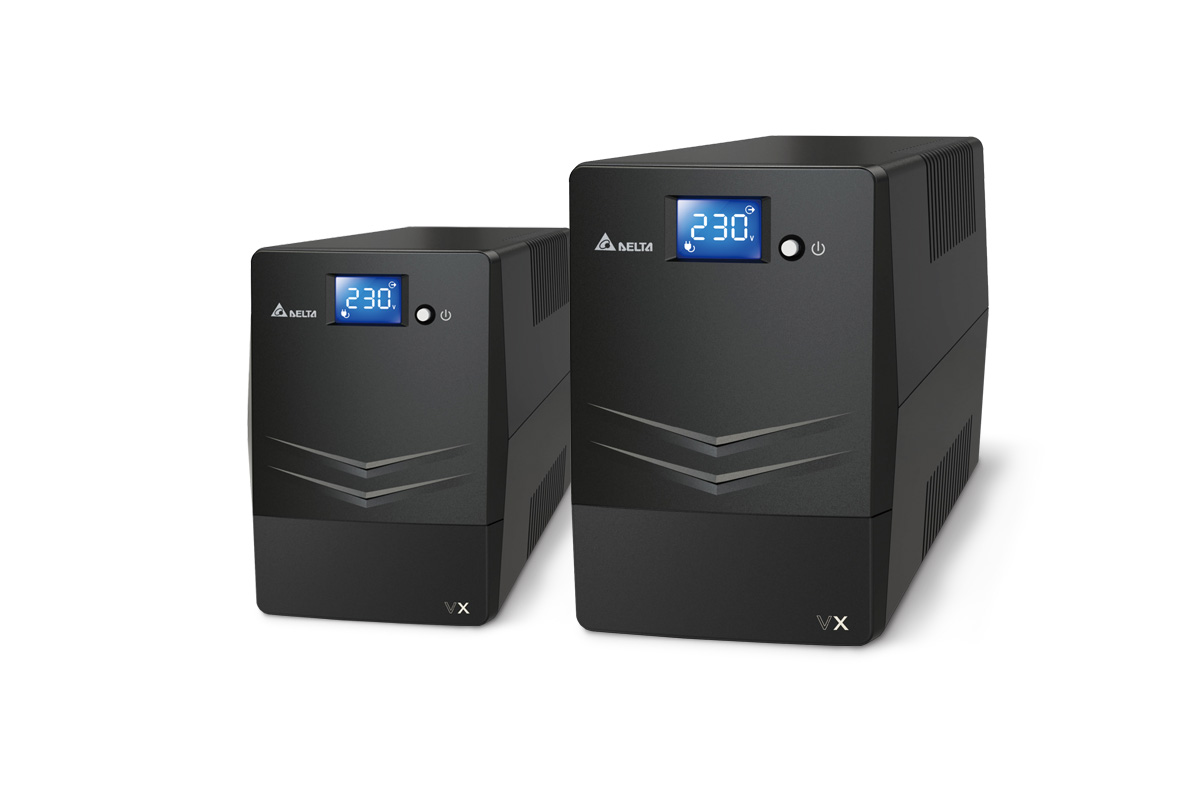

VX-600VA, VX-1000VA, VX-1500VA
Power Rating
⦁ VX-600VA: 600 VA / 360 W
⦁ VX-1000VA: 1000 VA / 600 W
⦁ VX-1500VA: 1500 VA / 900 W
Input
Nominal Voltage: 230 Vac
Voltage Range: 170~280 Vac
Frequency Range: 50/60 Hz (Auto sensing)
Output
Voltage: 230 Vac ± 10% (Battery mode)
Frequency Range: 50/60 Hz ± 1 Hz
Waveform (Batt. Mode): Simulated Sinewave
Receptacle
⦁ VX-600VA: IEC 320 C13 x 4
⦁ VX-1000VA: IEC 320 C13 x 4
⦁ VX-1500VA: IEC 320 C13 x 6 (EMEA model), IEC 320 C13 x 4 (SEA model)
Battery
Battery Type & Number
⦁ VX-600VA: 12V/7AH x 1
⦁ VX-1000VA: 12V/7AH x 2
⦁ VX-1500VA: 12V/9AH x 2 (EMEA model), 12V/7AH x 2 (SEA model)
Typical Recharge Time: 6~8 hours to 90%
Cold Start: Yes
Indicator
LCD: Input voltage, output voltage, battery capacity, load level and UPS status
Interface
Standard: 1 USB port
Environment
Operating Temperature: 0~40ºC
Altitude: 0-1000 m
Relative Humidity: 0~90% RH (Non-condensing)
Noise Level
⦁ VX-600VA: < 40 dB
⦁ VX-1000VA: < 40 dB
⦁ VX-1500VA: < 45 dB
Conformance
Safety & EMC: CE
Physical
Dimensions (W x D x H)
⦁ VX-600VA: 101 x 300 x 142 mm
⦁ VX-1000VA: 130 x 320 x 182 mm
⦁ VX-1500VA: 130 x 320 x 182 mm
Net Weight
⦁ VX-600VA: 4.4 kg
⦁ VX-1000VA: 8.2 kg
⦁ VX-1500VA: 10.4 kg
All specifications are subject to change without prior notice.

Downloads Request a Quote

Management Software Download
ViewPower is an advanced UPS management software for Delta’s VX series UPS. It allows remote monitor and manage from one to multiple UPSs in a networked environment, either LAN or INTERNET. It can not only prevent data loss from power outage and safely shutdown systems, but also store programming data and scheduled shutdown UPSs.

Download the software according to your requested operation system in your computer system from the following link: www.power-software-download.com/viewpower.html
