Basic Rack PDU

Input Voltage / Phase: 100-120 Vac / 1
Rated Current: 16 A
Plug Type: NEMA L5-20P
Output Voltage / Phase: 100-120 Vac / 1
Outputs (Number): NEMA 5-15/20R (8)
Dimensions (W x H x D): 440 x 44 x 55 mm
Weight: 1.56 kg
Certificate: UL / cUL
Model: PDU7111
Rated Current: 24 A
Plug Type: NEMA L5-30P
Output Voltage / Phase: 100-120 Vac / 1
Outputs (Number): NEMA 5-15/20R (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 4.88 kg
Certificate: UL / cUL
Model: PDU5113
Input Voltage / Phase: 200-240 Vac / 1
Rated Current: 16A
Plug Type: NEMA L6-20P
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (12)
Dimensions (W x H x D): 440 x 44 x 55 mm
Weight: 1.64 kg
Certificate: UL / cUL
Model: PDU7211
Rated Current: 16 A
Plug Type: IEC309-16A-3W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (12)
Dimensions (W x H x D): 440 x 44 x 55 mm
Weight: 1.48 kg
Certificate: CE, CCC
Model: PDU7311
Rated Current: 24 A
Plug Type: NEMA L6-30P
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 4.92 kg
Certificate: UL / cUL
Model: PDU5213
Rated Current: 32 A
Plug Type: IEC309-32A-3W
Output Voltage / Phase:200-240 Vac / 1
Outputs (Number): IEC320 C19 (4), IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 4.90 kg
Certificate: CE, CCC
Model: PDU5315
Input Voltage / Phase: 200-240 Vac / 3Δ
Rated Current: 40 A
Plug Type: CS8365C
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (12)
Dimensions (W x H x D): 55 x 1000 x 60/90 mm
Weight: 9.50 kg
Certificate: UL / cUL
Model: PDUD526

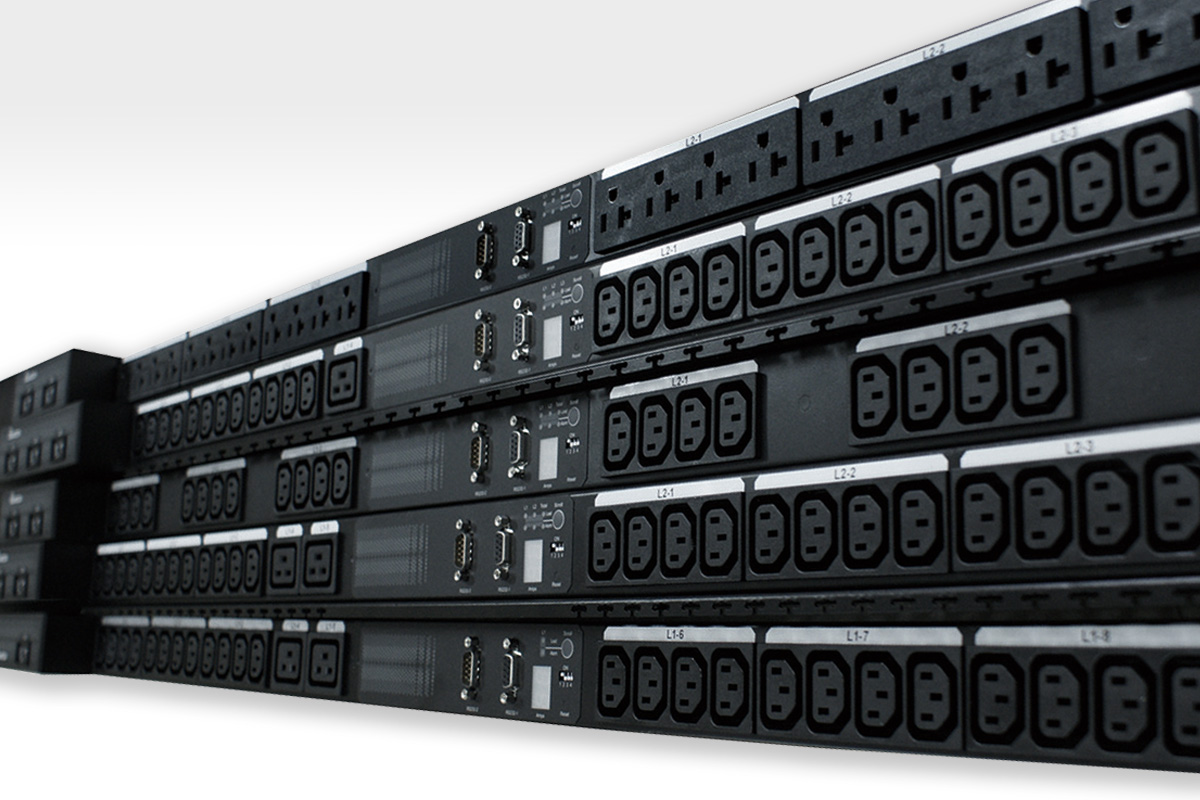

Metered Rack PDU

Input Voltage / Phase: 100-120 Vac / 1
Rated Current: 24 A
Plug Type: NEMA L5-30P
Output Voltage / Phase: 100-120 Vac / 1
Outputs (Number): NEMA 5-15/20R (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 5.34 kg
Certificate: UL / cUL
Model: PDU1113
Input Voltage / Phase: 200-240 Vac / 1
Rated Current: 16 A
Plug Type: IEC309-16A-3W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (3), IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 4.56 kg
Certificate: CE, CCC
Model: PDU1311
Rated Current: 16 A
Plug Type: IEC309-20A-3W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 4.60 kg
Certificate: UL / cUL
Model: PDU1211B
Rated Current: 24 A
Plug Type: NEMA L6-30P
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 5.24 kg
Certificate: UL / cUL
Model: PDU1213
Rated Current: 24 A
Plug Type: IEC309-30A-3W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (4), IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1250 x 50/90 mm
Weight: 5.12 kg
Certificate: UL / cUL
Model: PDU1313B
Input Voltage / Phase: 200-240 Vac / 3Δ
Rated Current: 28 A
Plug Type: CS8365C
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
Dimensions (W x H x D): 55 x 1708 x 55 mm
Weight: 8.20 kg
Certificate: UL / cUL
Model: AD-208/50B
Rated Current: 32 A
Plug Type: CS8365C
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
Dimensions (W x H x D): 48 x 1780 x 50/100 mm
Weight: 9.00 kg
Certificate: CE
Model: PDUE525
Rated Current: 32 A
Plug Type: CS8365C
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C13 (36)
Dimensions (W x H x D): 48 x 1560 x 50/100 mm
Weight: 8.00 kg
Certificate: UL / cUL
Model: PDU2525
Input Voltage / Phase: 346-415 Vac / 3Y
Rated Current: 32 A
Plug Type: IEC309-32A-5W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (3), IEC320 C13 (36)
Dimensions (W x H x D): 48 x 1660 x 50/100 mm
Weight: 8.30 kg
Certificate: CE
Model: PDU4425
Rated Current: 32 A
Plug Type: IEC309-32A-5W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (3), IEC320 C13 (24)
Dimensions (W x H x D): 48 x 1535 x 50/100 mm
Weight: 7.10 kg
Certificate: CE
Model: PDU4425-M
Rated Current: 32 A (UL 24 A)
Plug Type: IEC309-32A-5W
Output Voltage / Phase: 200-240 Vac / 1
Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
Dimensions (W x H x D): 55 x 1708 x 55/70 mm
Weight: 8.00 kg
Certificate: UL / cUL, CE
Model: AD-240/32J

Interface (Metered Rack PDU)

RS232-1: Connect to a PC for remote operation or a firmware upgrade
RS232-2: Connect to an SNMP card or to another rPDUs

Environment

Temperature
Operating: 0~45/50˚C*, Storage: -20~65˚C (* 50˚C only available for AD-XXX/XXX)
Relative Humidity
Operating: 5~95%
Elevation
Operating: 0~2000 m, Storage: 0~15000 m

International standards of power plugs/receptacle
