Model

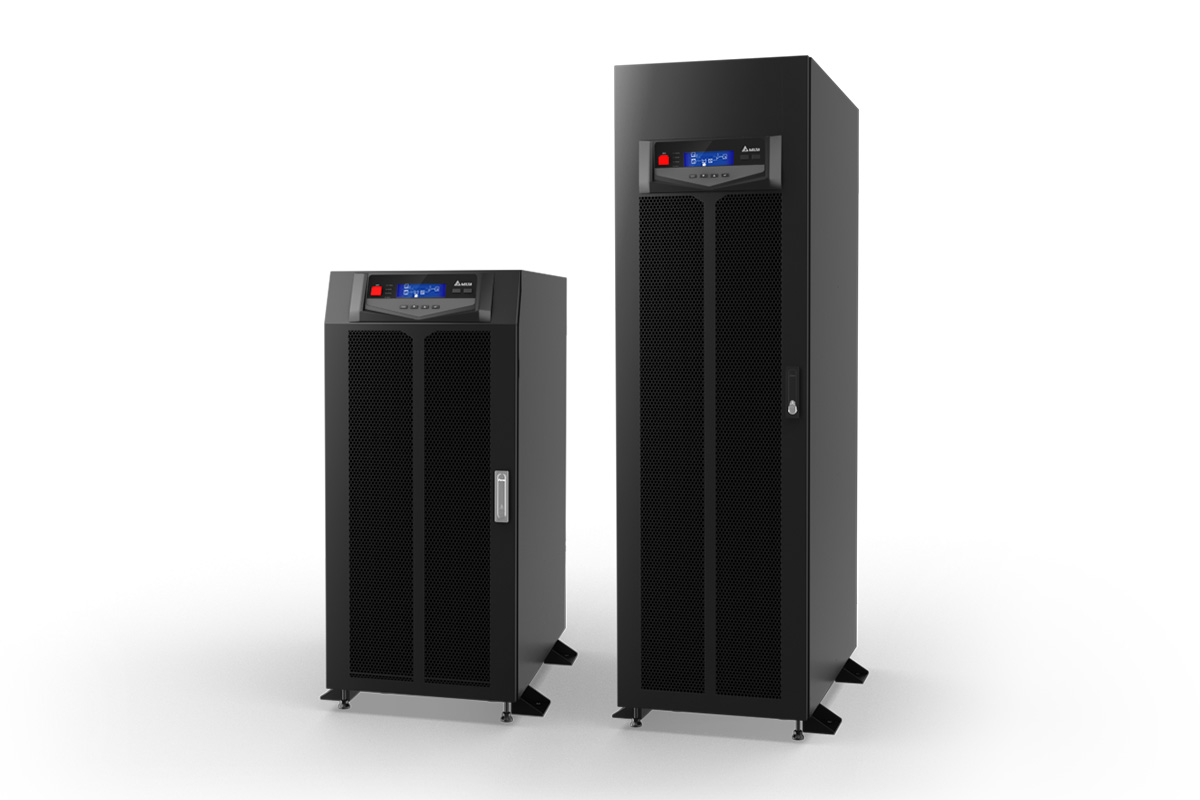

HPH-60K, HPH-80K, HPH-100K, HPH-120K
Power Rating
• HPH-60K: 60 kVA/kW
• HPH-80K: 80 kVA/kW
• HPH-100K: 100 kVA/kW
• HPH-120K: 120 kVA/kW
Parallel Configuration: Up to 4 Units
Input
Nominal Voltage: 380/400/415 Vac, 3P4W+PE
Voltage Range
332-477 Vac (full load)
228-332 Vac (with derating from 63-100% load)
Frequency: 40-70 Hz
Total Harmonic Distortion (THDi): < 3%
Power Factor: > 0.99 (full load)
Short Circuit Withstand Rating
• HPH-60K: 15 A
• HPH-80K/100K/120K: 22 A
Output
Voltage: 380/400/415 Vac, 3P4W+PE
Voltage Regulation: ± 1%
Frequency: 50/60 ± 0.05 Hz
Total Harmonic Distortion (THDv): ≤ 2% (Linear Load)
Power Factor: 1.0
Overload Capability
≤ 125%: 10 mins; 126-150%: 1 min; > 150%: 1 sec
Current Crest Ratio: 3:1
Efficiency
Online Mode: > 96%
ECO Mode: Up to 99%
Battery
Battery Type: VRLA/ Lithium-ion
Nominal Voltage: ±240 Vdc
Quantity: 32-46 pcs⁽¹⁾
Charge Current
• HPH-60K: 10 A
• HPHH-80K: 15 A
• HPH-100K/120K: 20 A
Max. Charger Current with Optional Charger Board
• HPH-60/80K: 20 A
• HPH-100/120K: 40 A
Communication Interfaces
Display: LCD Screen with LED Indicators
Port: Smart slot x1, Mini slot x1, Parallel port x2, RS-232 x1, Charger detection port x1, Input dry contact x2, Output dry contact x6, USB x1, REPO port x1, External battery temperature sensing port x2
Emergency Power Off: Yes
Physical
Dimensions (W x D x H)
• HPHH-60K/80K: 520 x 800 x 1175 mm
• HPH-100K/120K: 520 x 800 x 1760 mm
Net Weight
• HPH-60K: 186.5 kg
• HPH-80K: 191 kg
• HPH-100K/120K: 312 kg
Packing Dimensions (W x D x H)
• HPH-60K/80K: 685 x 1003 x 1337 mm
• HPH-100K/120K: 720 x 994 x 1952 mm
Packing Weight
• HPH-60K: 220.5 kg
• HPH-80K: 225 kg
• HPH-100K/120K: 388 kg
Environment
Operating Temperature: 0 to 45˚C⁽²⁾
Humidity: 5-95 % (non-condensing)
Altitude: 0-1,000 m (without derating)
Storage Temperature: -20 to +50 °C
Ingress Protection: IP20
Conformance
Safety: CE
EMC: IEC 62040-2
Performance: IEC 62040-3
Sustainability: RoHS, REACH
Features
Backfeed Protection: Standard
Cold Start Function: Standard
Synchronized Multiple Bus (SMB): Standard
Advanced Power Walk-in for Generator: Option
Dual Input: Option
(1) 32-36 pcs require service setting and load derating
(2) 40 to 45°C with load derating

All specifications are subject to change without prior notice.
