Efficiency is improved by 0.5% compared to competing products
Footprint is less than 60% of similar products
Maximum power density is increased by more than 50%
Designed for reliable wall installation and front-side maintenance, reducing construction area by 1/3
Water cooling design enhances the utilization rate of internal components

Wide operating power range (20%-110%)
Eliminates the need for extra power quality control devices, with current harmonics ≤ 5%
Voltage regulation devices are unnecessary, providing reliable and stable DC output despite ±10% grid variations
Overall response time ≤ 100ms
Output voltage ripple ≤ 1%, output current ripple ≤ 2%
Meets grid high/low voltage ride-through requirements

Modular design for easy installation and maintenance
Standardized power cabinet design, easy for parallel cabinet expansion
Individual input and output switches per cabinet, enabling operation to continue by bypassing a failed cabinet
IP44 protection class, with a fully sealed cabinet design, adaptable to severe environments with wind-blown sand
C3H neutral salt spray 240H protection, suitable for high salt spray environments in coastal areas
Multiple fault protections, online monitoring, and software updates, minimizing maintenance time

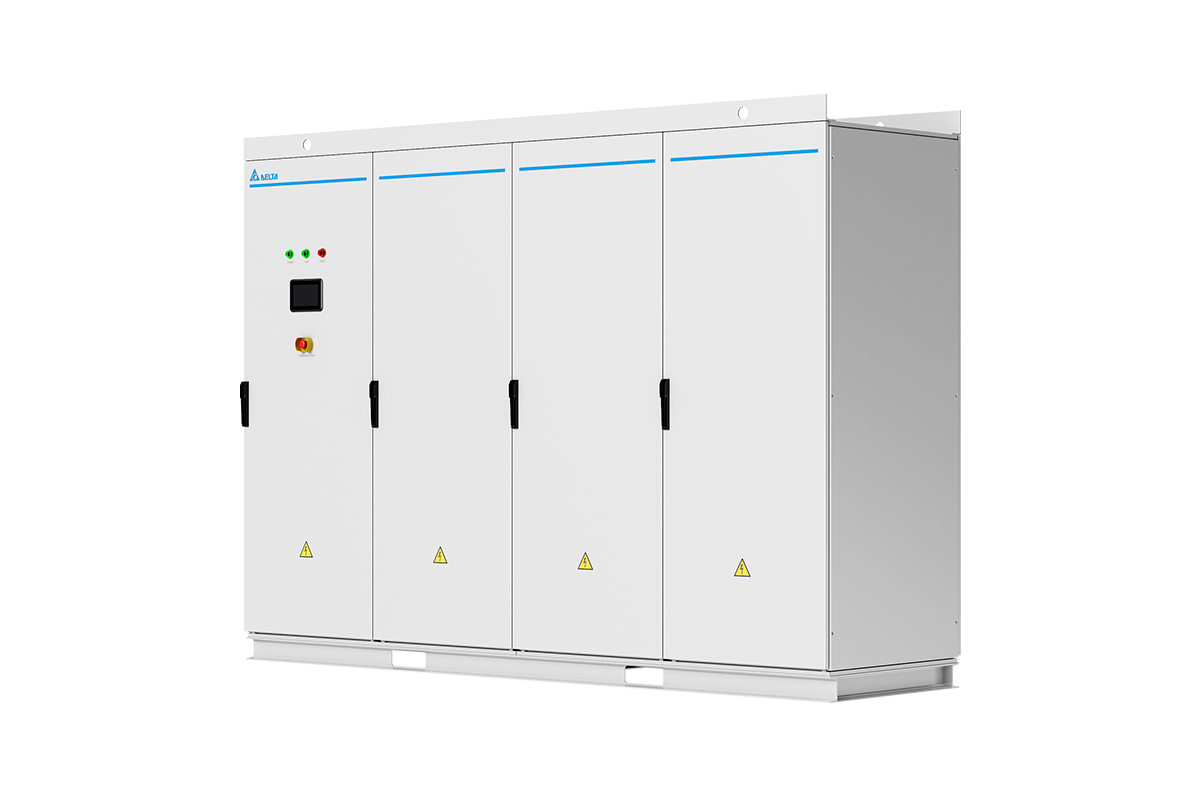

ALK5000S/ALK6000S/ALK8400S
